• Columnar Motors
  • Electronic adjustments of backrest, footrest, height
  • Trendelenburg and Reverse Trendelenburg

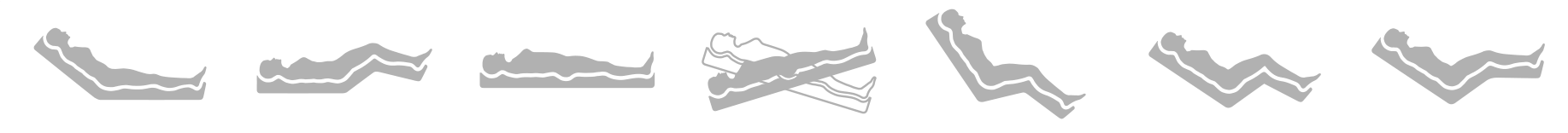

  • Fowler, Vascular and Cardiac positions
  • Electronic CPR
  • Function-Lock System to prevent misuse by patient or unauthorized personnel
  • Auto-regression system
  • Auto-contour
  • Foot-end nurse control panel
  • 2 control panels for nursing staff
  • 2 control panels for patients’ use
  • Angle indicator for backrest adjustment and Trendelenburg positions
  • Lockable and fold-away PP side rails
  • Lockable and detachable Polypropylene head and foot boards
  • 4 section, detachable ABS mattress platform
  • ABS covered sub frame
  • Electrostatic powder coated metal frame
  • Gradually adjustable footrest
  • Drainage bag hooks at both sides
  • IV pole sockets located at four corners
  • Protective plastic corner bumpers
  • Underbed illumination
  • Height adjustable stainless steel IV pole
  • Central lockable single castors
  • Foot-end nurse control panel

TECHNICIAL SPECIFICATIONS Electronic ICU and Service Bed

Backrest Angle : 0°-70° Footrest Angle : 0° - 42°
Trendelenburg Angle : 0° - 15° Reverse Trendelenburg Angle : 0° - 15°
Castor Diameter : 150 mm Safe Working Load Capacity : 250 kg
External Dimensions : 100 x 216 cm Mattress Platform : 85 x 195 cm
Height (without mattress) : 44 - 84 cm Power In : max. 3,15 A 100V-240V - 50/60 Hz
Electrical Shock Protection : Clas I, Type B Liquid Ingress Protection : IPx66

OPTIONAL ACCESSORIES

Battery Back-up
Oxygen Bottle Holder
File Holder
Lifting Pole
X-Ray Cassette Holder at Backrest
Linen Holder
Foam Mattress
Electronic Scale System
Manual CPR at Backrest
Bed Size Extension
Central Lockable Twin Castors (150 mm)

COLOR CHART

  • F304
  • F307
  • F308
  • F309
  • F310

QUALITY CERTIFICATES
