• 2 motors

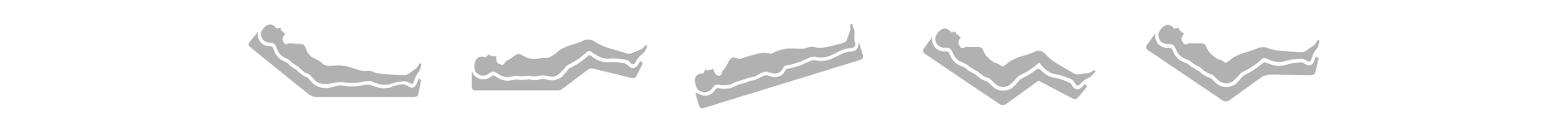

  • Electronic adjustments of backrest and footrest functions
  • Trendelenburg by gas spring
  • Fowler
  • Vascular
  • Auto-contour
  • Hand Control unit
  • Collapsible side rails
  • Gradually adjustable footrest
  • 4 section, mattress platform
  • Electrostatic powder coated metal frame
  • Lockable and detachable (PP) head and foot boards
  • Protective plastic corner bumpers
  • IV pole socketsHeight adjustable stainless steel IV pole
  • Lockable castors

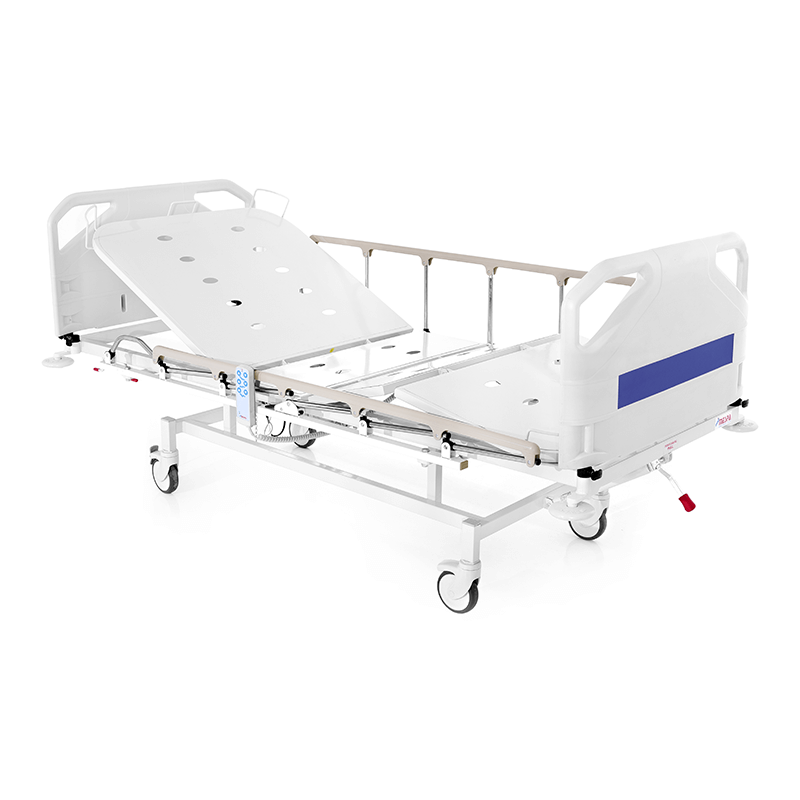

TECHNICIAL SPECIFICATIONS Electronic Patient Bed, 2 Motors

Backrest Angle : 0°-70° Footrest Angle : 0° - 42°
Castor Diameter : 125 mm Trendelenburg Angle : 0° - 12°
Safe Working Load Capacity : 240 kg External Dimensions : 98 x 214 cm
Mattress Platform : 85 x 195 cm Height(without mattress) : 53 cm
Weight : 73 kg Power In : max. 3,15 A 100V-240V - 50/60 Hz
Electrical Shock Protection : Clas I, Type B Liquid Ingress Protection : IPx66

OPTIONAL ACCESSORIES

Oxygen Bottle Holder
File Holder
Lifting Pole
Orthopedic Traction System
Antibacterial, Fire Retardant Mattress

COLOR CHART

  • F304
  • F307
  • F308
  • F309
  • F310

QUALITY CERTIFICATES
