• Manual adjustment of backrest and footrest by hand crank

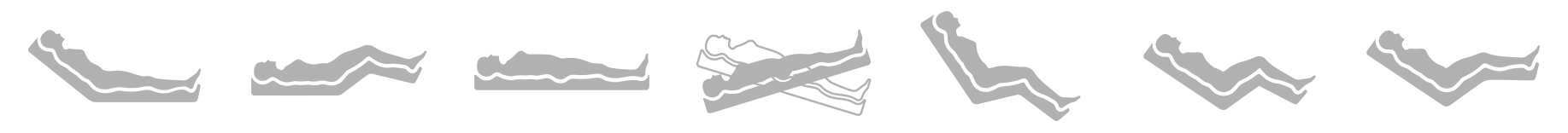

  • Trendelenburg and Reverse Trendelenburg adjustment
  • Hydraulic height adjustment
  • Gradually adjustable footrest by ratchet
  • 4 section, detachable ABS mattress platform
  • Collapsible side rails
  • Lockable and detachable (PP) head and foot boards
  • Electrostatic powder coated metal frame
  • Protective corner bumpers
  • IV pole sockets and IV Pole
  • Diagonal Lockable castors

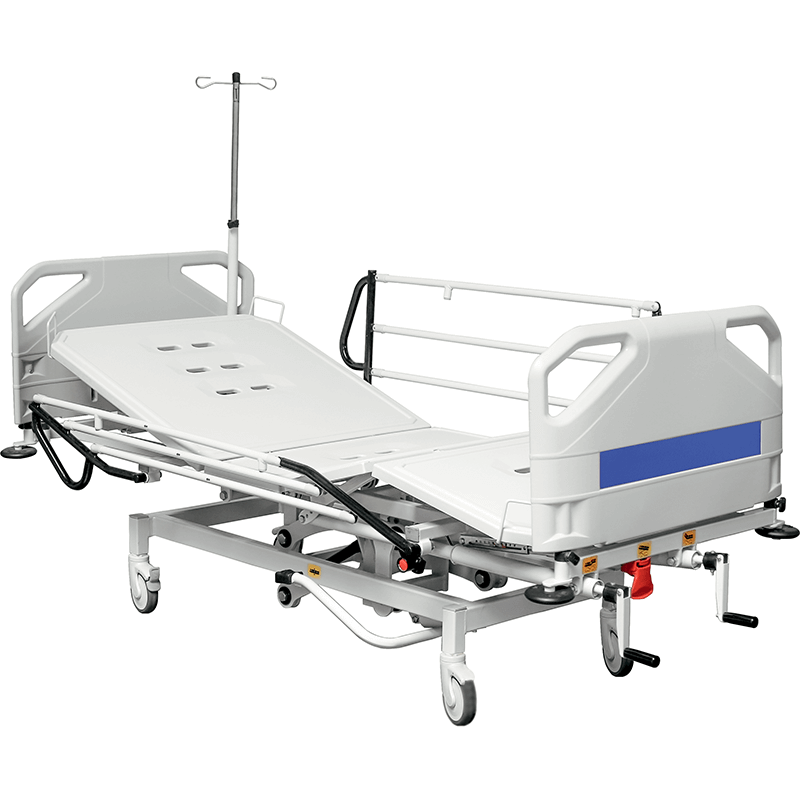

TECHNICIAL SPECIFICATIONS Hydraulic ICU and Patient Bed

Backrest Angle : 0°-70° Footrest Angle : 0° - 30°
Castor Diameter : 125 mm Trendelenburg /Ters Trendelenburg : 0° - 16°
Safe Working Load Capacity : 240 kg External Dimensions : 98 x 214 cm
Mattress Platform : 85 x 195 cm Height (without mattress) : 49 - 78 cm
Weight : 110 kg

OPTIONAL ACCESSORIES

Oxygen Bottle Holder
File Holder
Lifting Pole
X-Ray Cassette Holder at Backrest
Orthopedic Traction System
Antibacterial, Fire Retardant Mattress

COLOR CHART

  • F304
  • F307
  • F308
  • F309
  • F310

QUALITY CERTIFICATES
